Walker Sound now has lighting systems available for hire.

This is not on the same scale as our stock of sound equipment although it has become very popular and is expanding.



The list and prices below are also on the main hire price list page.

Further down the page, there are specification details and lighting package prices.

Note: The package prices are not discounted bundles, they are just examples.



NEW ADDITIONS

 LG BX503B - DLP Projector - 5000 lumens XGA 1024 x 768  Tascam SS-CDR1  Lecterns  Pipe & Base

 Sennheiser EW100 & EW300 G3 ( Range GB )  Silenced Diesel Generator 6.5 KVA  Litedeck Staging

QTX Haze Machine Follow Spot  LED Par 64 /  DMX RGB 18x3w Tri Colour Kam DMX Star Cluster 3D Laser



Hire Rates:  1 Day =1/3 Weekly Rate; 2 Days = 2/3 Weekly Rate; 3 to 7 Days = 1 Week Rate



LIGHTING

 Weekly

 Daily

Click Logo for Image & Specs

Chauvet Intimidator 2.0 DMX Scanner

£60.00

£20.00

Chauvet Intimidator PDF

Chauvet Insignia 2.0 DMX Barrel Scanner

£60.00

£20.00

Chauvet Insignia PDF

Martin Mac 250+ Moving Head

£144.00

£48.00

Martin Mac 250+ PDF

Cameo LED Par 64 /  DMX RGB 18x3w Tri Colour

£36.00

£12.00

Cameo_Par64_18x3w PDF

Thomas Par 64 1000w long nose can ( black )

£10.80

£3.60

Par 64 PDF

Par 56 300w Floor can ( chrome )

£7.20

£2.40

Par 56 Floor PDF

Par 36 12v 30w Pin Spot ( narrow beam )

£7.20

£2.40

CCT Profile 650w Minuette 21- 36 Variable Beam

£15.00

£5.00

Click Logo for Image & Specs

CCT Profile PDF

Kam DMX Star Cluster 3D Laser

£60.00

£20.00

Kam Star Cluster PDF

Equinox Firecracker 1500w DMX Strobe

£43.20

£14.40

50 Metre Multi-colour Rope Light

£66.00

£22.00

10 Party Festoon Lamps ( 10 metres )

£28.80

£9.60

Showtec MSR575 Follow Spot    c/w tripod stand

£162.00

£54.00

Zero 88 Betapack 2 DMX 6 way Dimmer Rack

£30.00

£10.00

Betapack 2 user PDF

Anytronics S192 6 Way Switch DMX

£30.00

£10.00

  Anytronics S 192

Behringer Eurolight LC2412 24-Channel DMX Desk

£54.00

£18.00

Click Logo for Image & Specs

LC2412 user PDF

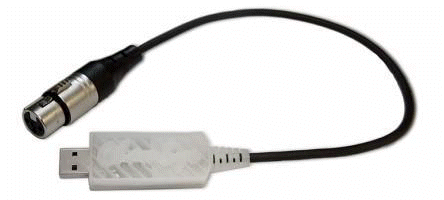

Chamsys MagicQ PC USB to DMX ( Full )

£54.00

£18.00

MagicQ_quickstart.pdf

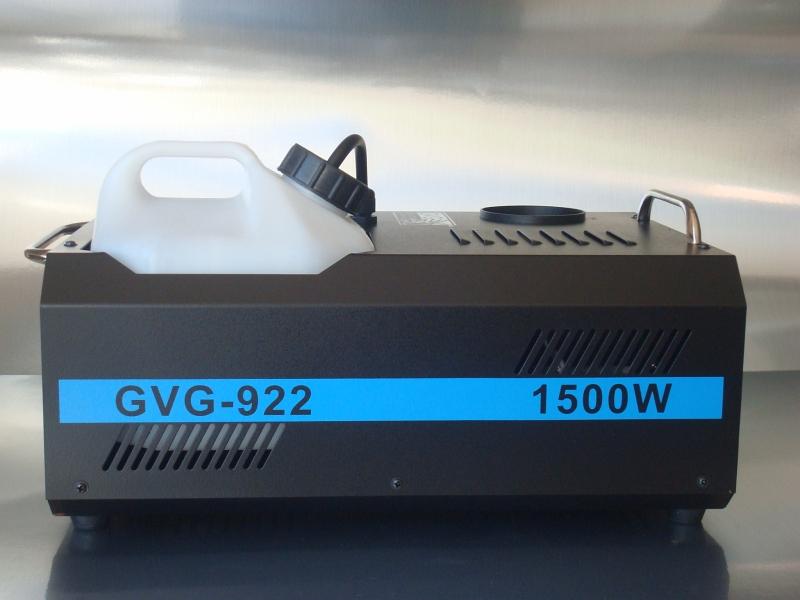

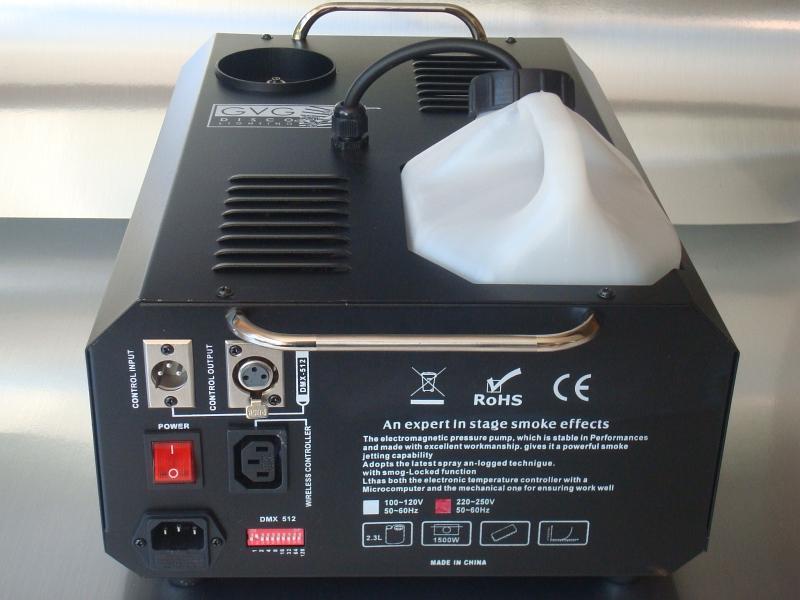

GVG-922 1500w Upward Fog / Smoke Machine

£45.00

£15.00



QTX HZ-2 600w DMX Haze Machine

£45.00

£15.00

QTX HZ-2_PDF

QTX 20" Mirror Ball

£18.00

£6.00



QTX 20" Mirror Ball Motor

£9.00

£3.00



2m 2" Tube Bar

£0.60

£0.20





2m Opti Trilite 200 Lighting Truss

£27.00

£9.00

Opti Trilite PDF

10m 19 pin Socapex multicore  1.5

£12.00

£4.00

Click Logo for Image & Specs



15m 19 pin Socapex multicore  1.5

£18.00

£6.00

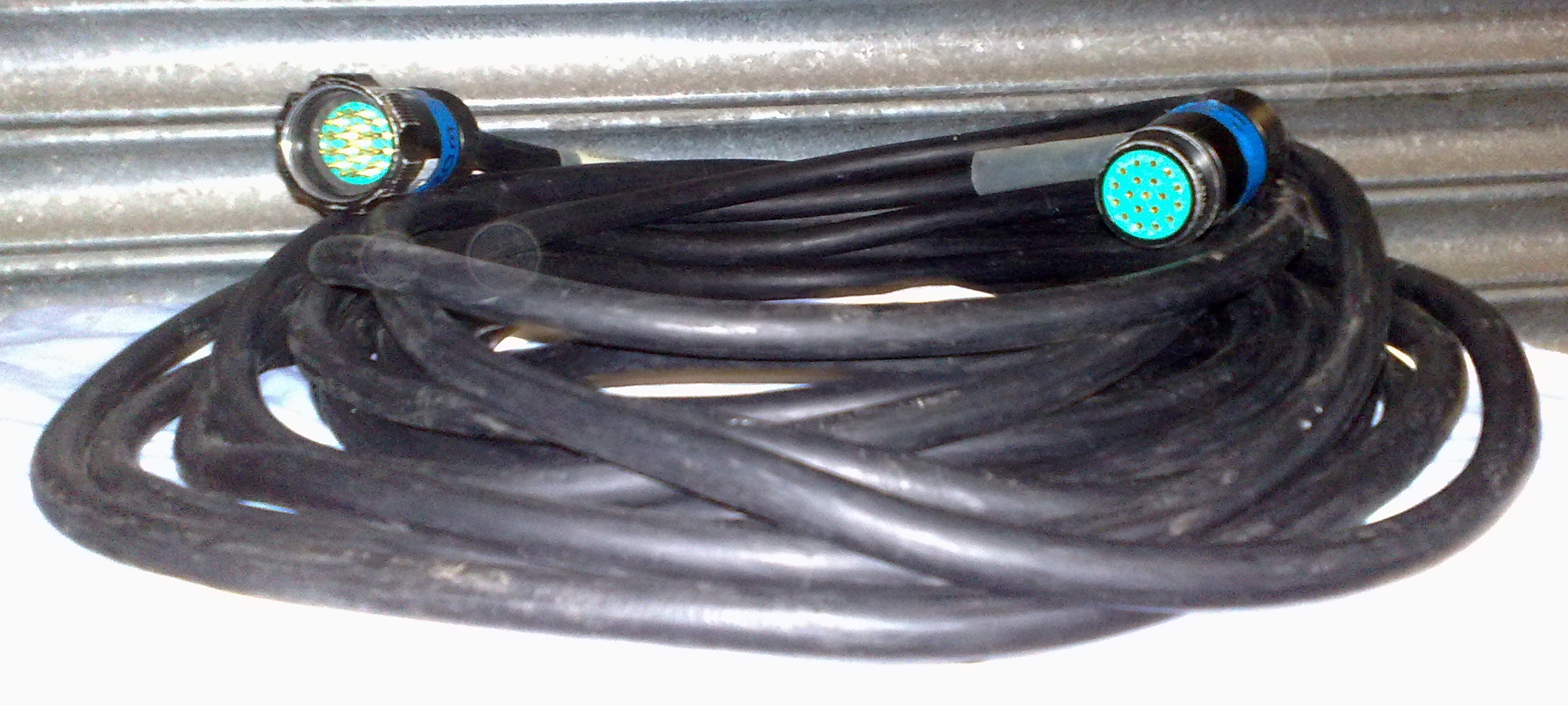

20m 19 pin Socapex multicore  1.5

£24.00

£8.00





30m 19 pin Socapex multicore  1.5

£30.00

£10.00

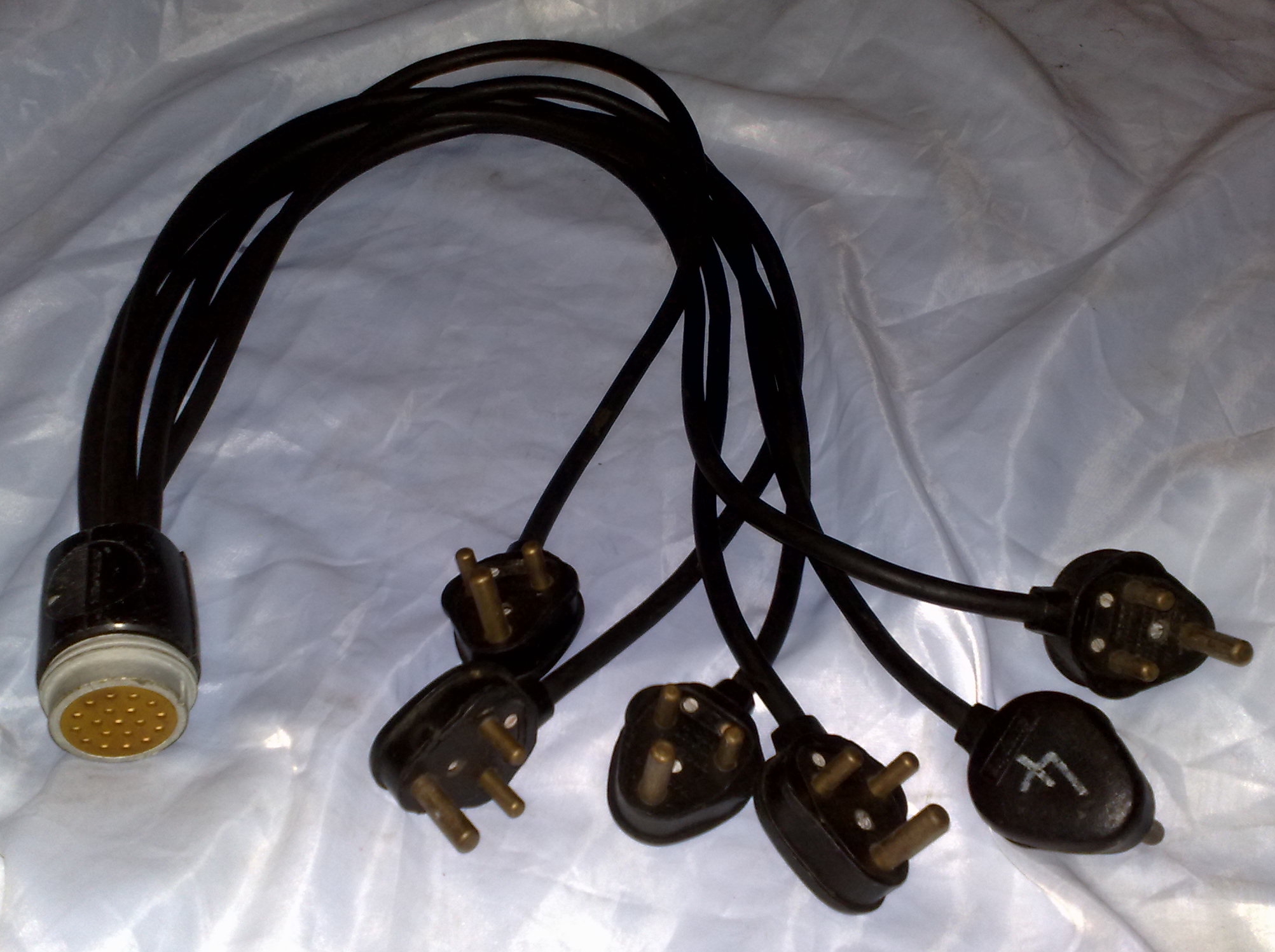

Socapex 6x 15A plug plug Fanout

£4.50

£1.50

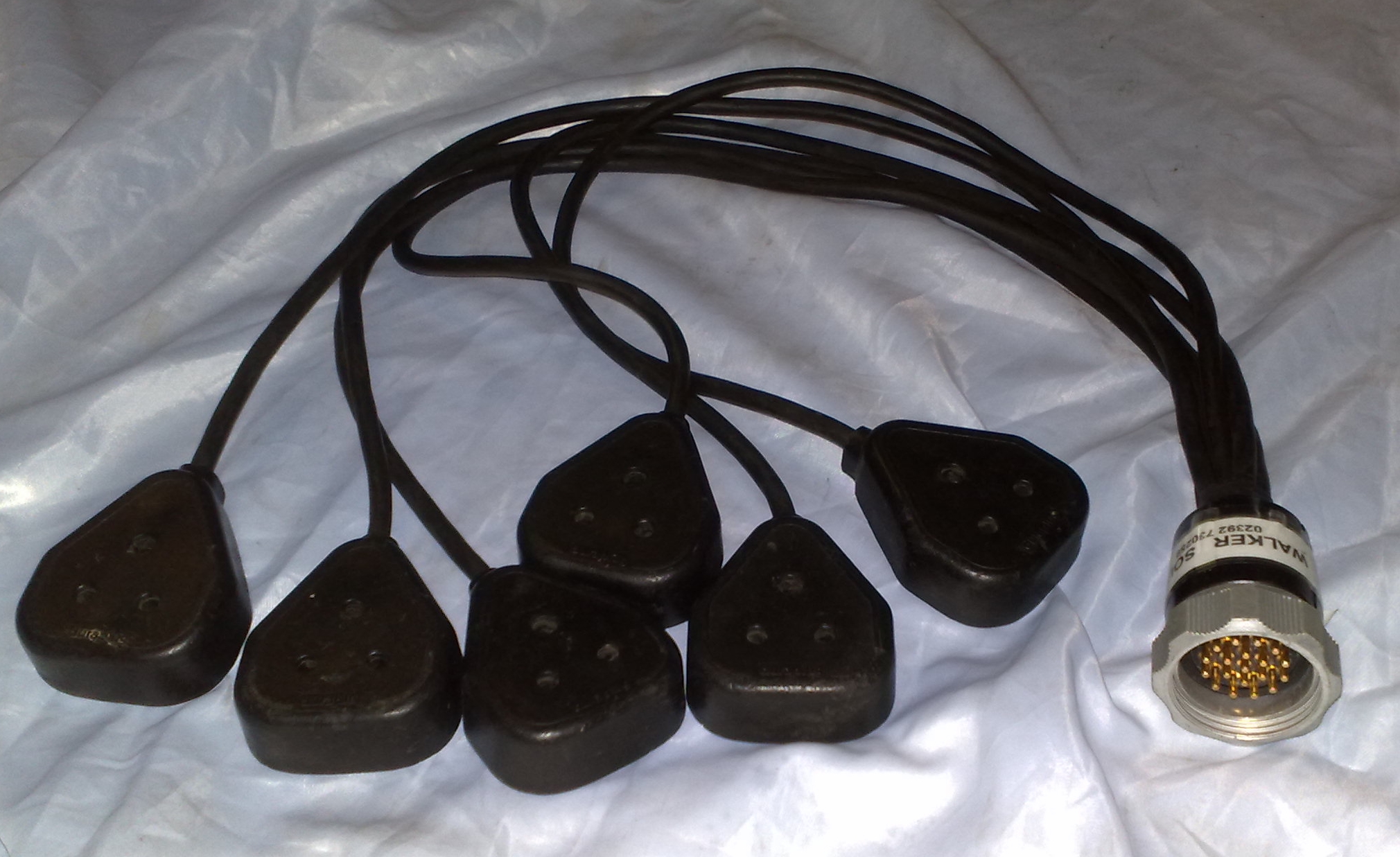

Socapex 6x 15A plug socket Fanout

£4.50

£1.50





10m 15A TRS Cable

£3.00

£1.00





20m 15A TRS Cable

£6.00

£2.00





15A plug to 2 x 15A socket splitter

£1.50

£0.50







STANDS

 Weekly

 Daily





Manfrotto wind up stand - Type 087NW

£36.00

£12.00

Manfrotto PDF

Lighting Stand ( pair )

£24.00

£8.00

Lighting Stand ( single )

£12.00

£4.00



MAINS

 Weekly

 Daily





Silenced Diesel Generator 6.5 KVA

£360.00

£120.00





Kawasaki GA 1400A Generator

£75.00

£25.00





125 Amp Mains Distro ( single phase )

£57.60

£19.20





32 Amp Mains Distro ( single phase )

£36.00

£12.00





32 Amp Mains Distro ( three phase )

£48.00

£16.00







RIGGING

 Weekly

 Daily





Zarges 3 section 9.7m Ladder

£72.00

£24.00





Parrot Pearch 2" 1.5m

£2.40

£0.80





Steel Sling 2m 1 ton

£1.20

£0.40





Shackle 2 ton

£0.30

£0.10





Shackle 1.5 ton

£0.30

£0.10





Spanset 4m 1 ton

£1.20

£0.40







STAGING

 Weekly

 Daily

Click Logo for Image & Specs



Litedeck 8ft x 4ft x 2ft (W x D x H) Sections ( legs included )

£72.00

£24.00



Stage Skirting

poa

poa





3 Tread Steps Stage

£24.00

£8.00





Blackout Stage Drape Backdrop 6m x 4m ( (W x H)

£180.00

£60.00





Blackout Stage Drape Backdrop 9m x 3m ( (W x H)

£216.00

£72.00









PIPE & BASE

 Weekly

 Daily

Click Logo for Image & Specs



TS712 7ft to12ft Adjustable Upright with 450mm Base

£36.00

£12.00





TDS712 7ft to12ft Extendable Cross Piece

£18.00

£6.00





PERIOD DISCOUNTS BREAKS









4 weeks plus - less 10%









6 weeks plus - less 20%









12 weeks plus - less 30%









24 weeks plus less 40%









48 weeks plus - less 50%









1 Day =1/3 Weekly Rate; 2 Days = 2/3 Weekly Rate; 3 to 7 Days = 1 Week Rate







Martin Mac 250+ Profile Spot Intelligent Moving Head Light

Martin Mac 250+ Profile Spot Intelligent Moving Head Light



Flight cased in Pairs – (price for single unit)



This exciting profile spot moving head is a unique combination of intelligence and beauty.

Designed as a compact version from the highly successful MAC family, the MAC 250+

has proven to be a perfect moving head effect for the club, professional touring and production studio markets.



The MAC 250+ is an automated yoke-mounted profile spotlight that employs a 250 watt discharge source. It provides an 18.3° achromatic lens system, 12 easily replaceable saturated dichroic colours, 8 easily replaceable rotating gobos, indexible gobo rotation,

a fast 3-facet rotating prism, variable focus, strobe effects, 0 to 100% dimming, and accurate 16-bit movement.



Features



  • 250W MSD lamp

  • PAN/TILT range of 540°/289°

  • Continuous rotation colour wheel

  • Continuous rotation gobo wheel

  • Virtually silent fan cooling

  • Convenient ¼ turn fasteners

  • MP2 updates the software over the DMX link

  • Automatic Feedback System

  • User Configurable Lens System

  • Modular Construction for easy maintenance



Physical



  • Length: 330 mm (13.0 in)

  • Width: 384 mm (15.1 in)

  • Height (head at tilt limit): 525 mm (20.7 in)

  • Weight: 22.0 kg (48.4 lbs)





Chauvet Intimidator 2.0 DMX Scanner ( DMX-605A )







Watch on YouTube (left)









The Intimidator™ 2.0 is a 5-channel DMX scanner.

It features separate color and gobo wheels, is fully programmable, and has Gobo Bounce™.

The unit contains built-in beat activated and automatic programs, and automatically enters stand alone when no DMX signal is present.

The Intimidator™ 2.0 is linkable with the Insignia™ 2.0



Features



  • 5-channel DMX-512 scanner

  • Pan: 180° / tilt: 90°

  • Variable strobe/shutter

  • Colour wheel: 11 colours + white, 1 quad colour, 1 tri colour, Rainbow colour

  • spin effect

  • Gobo wheel:  - 14 gobos + open, - 12 metal, 2 glass installed - Gobo wheel spin effect

  • Variable motorized shutter (for strobing)

  • Built-in automated programs via master/slave

  • Built-in sound-active programs via master/slave

  • Double bracket yoke doubles as floor stand

  • Automatically enters stand alone when no DMX signal is present

  • Linkable with Insignia™, Insignia™2.0, Intimidator™, Intimidator™ 2.0 HTI

  • Bulb-saver cuts off after 10 seconds

 Specification

  • Beam angle: 12°

  • Lux: 21,057 @ 1 meter

  • Light Source : ELC3 24V 250W 3400°K 300hrs

  • Power and current:  120V, 60Hz: 262W, 2.3A operating, 7.9A inrush, PF 0.96

  • Power:  Switchable 110V or 230V

  • Weight: 19.5lbs (8.9kgs))

  • Size: 23in x 10.5in x 6.75in ( 584.2mm x 266.7mm x 171.45mm )





Chauvet Insignia 2.0 DMX Barrel Scanner ( DMX-610A )







Watch on YouTube below



The Insignia™ 2.0 is a 5-channel DMX barrel scanner.



It features separate color and gobo wheels, is fully programmable, and has Gobo Bounce™.

The unit contains built-in beat activated and automatic programs, and automatically enters

stand alone when no DMX signal is present.

The Insignia™ 2.0 is linkable with the Insignia™, Intimidator™, Intimidator™ 2.0 and Intimidator ™ 2.0 HTI.



Features

  • 5-channel DMX-512 scanner

  • Pan: 180° / tilt: 360°

  • Color wheel: 11 colors + white, 1 quad color, 1 tri color, Rainbow color spin effect

  • Gobo wheel with Gobo Bounce™, 14 gobos + open, 12 metal, 2 glass installed, Gobo wheel spin effect

  • Variable motorized shutter (for strobing)

  • Built-in automated programs via master/slave

  • Built-in sound activated programs via master/slave

  • Double bracket yoke doubles as floor stand

  • Automatically enters stand alone when no DMX signal is present

  • Linkable with Insignia™, Intimidator™, Intimidator™ 2.0 and Intimidator ™ 2.0 HTI

  • Bulb-saver cuts off after 10 seconds

Specification

  • Beam angle: 12°

  • Lux: 21,057 @ 1 meter

  • Light Source : ELC3 24V 250W 3400°K 300hrs

  • Power and current: 120V, 60Hz, 2.3A operating, 7.9A inrush, PF 0.96

  • Power:  Switchable 110V or 230V

  • Weight: 19.5lbs (8.9kgs))

  • Size: 23in x 10.5in x 6.75in  ( 584.2mm x 266.7mm x 171.45mm )





Kam DMX Star Cluster 3D Laser



Features



The ultimate Star Cluster!
3D version of the best selling laser effect
Multiple 100mW red and 40mW green laser points
Three dimensional laser effect to create endless show creation possibilities. Built-in high speed stepping motor High-efficiency optical system.

Specification

  • Sound-to-light sensitivity control with animated patterns

  • 5 channel DMX operation / XLR DMX in and out

  • 10 point dip switches

  • Tough all metal chassis with adjustable hanging bracket

  • Key operated power control

  • Rated voltage: 220-240V AC / Rated frequency: 50/60Hz

  • Laser wavelength: 100mW/650nm | 400mW/532nm







Watch on YouTube below





Cameo LED Par 64 18x3w DMX











Watch on YouTube below



Ultra-high performance LED PAR 64 with 18 ultra-bright 3-Watt TRI colour LEDs in a polished housing. This high-performance LED PAR has a beam angle of 25 degrees and a power consumption of just 80 Watts. Like all new LED PAR cans, the CLP 64 TRI 3 WPS features a sturdy housing. The double bracket makes this PAR can the ideal lamp for use as a floor PAR or for mounting to cross-beams and bars.

It is actuated either via the DMX protocol (3-pole XLR) with six control channels, in master/slave mode or standalone mode (sound control, colour change, solid colours). It features an integrated microphone and is quick and easy to operate using four buttons and an LED display.

  • 18 ultra-bright 3-Watt TRI colour LEDs

  • Beam angle of 25 degrees

  • Low power consumption of just 80 Watts

  • Operated via DMX (6 channels), in master/slave mode or standalone mode

  • Integrated microphone for sound control

  • Simple to operate using the four buttons and LED display

  • Double bracket included as standard

  • Cooling method: Fan

  • Sturdy aluminium housing with polished or black finish

Specifications

  • Product: LED Par Can

  • Type: PAR64

  • Colour Range: RGB

  • Number of LEDs: 18

  • LED Type: 3 W TRI Colour

  • Beam Angle: 25°

  • DMX Input: XLR 3-pole

  • DMX Output: XLR 3-pole

  • DMX Mode: 6-channel

  • DMX Functions: RGB, Master Dimmer, Strobe, Sound Control, Colour Jump, Colour Fade

  • Standalone Modes: Static Colour, Colour Change, Colour Fading, Sound Control, Slave

  • Controls: Mode, Enter, Value Up, Value Down

  • Indicators: LED Display

  • Power Supply: 100 V AC - 250 V AC

  • Power Consumption: 80 W

  • Power Connector: 13A Plug

  • Housing Material: Aluminium

  • Housing Colour: Polished

  • Dimensions: 280 x 260 x 390 mm

  • Weight: 2.5Kg

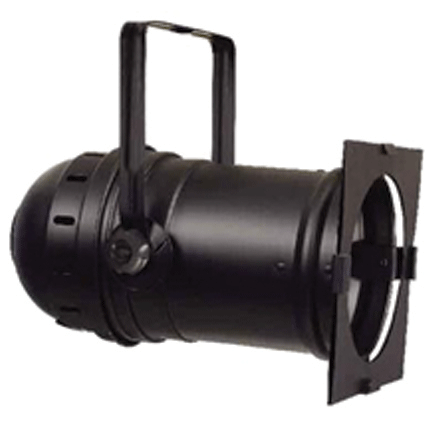

Thomas Par 64 1000w long nose can ( black )



Fitted with a 15A plug.

Lamps CP61 & CP62 ( narrow & medium beam )

Comes with 2" Hook clamp, safety and gel frame.

Gel filters available on request



Thomas pioneered the lightweight aluminium Par lantern. Today this lantern is widely regarded as the industry standard Par fixture. It is manufactured from thick gauge aluminium for maximum durability and with high quality components, these all contribute to the longevity of the product. A fIoorlite version is also available. Colour:- Black



Square gel frames are included.

T.V specifications satisfy the requirements for the majority of venues as it has the following safety features as standard:- Safety wire from body to cap, and yoke to lighting bar. This unit also has lamp adjuster to enable external adjustment of lamp.



60 Available from our hire stock

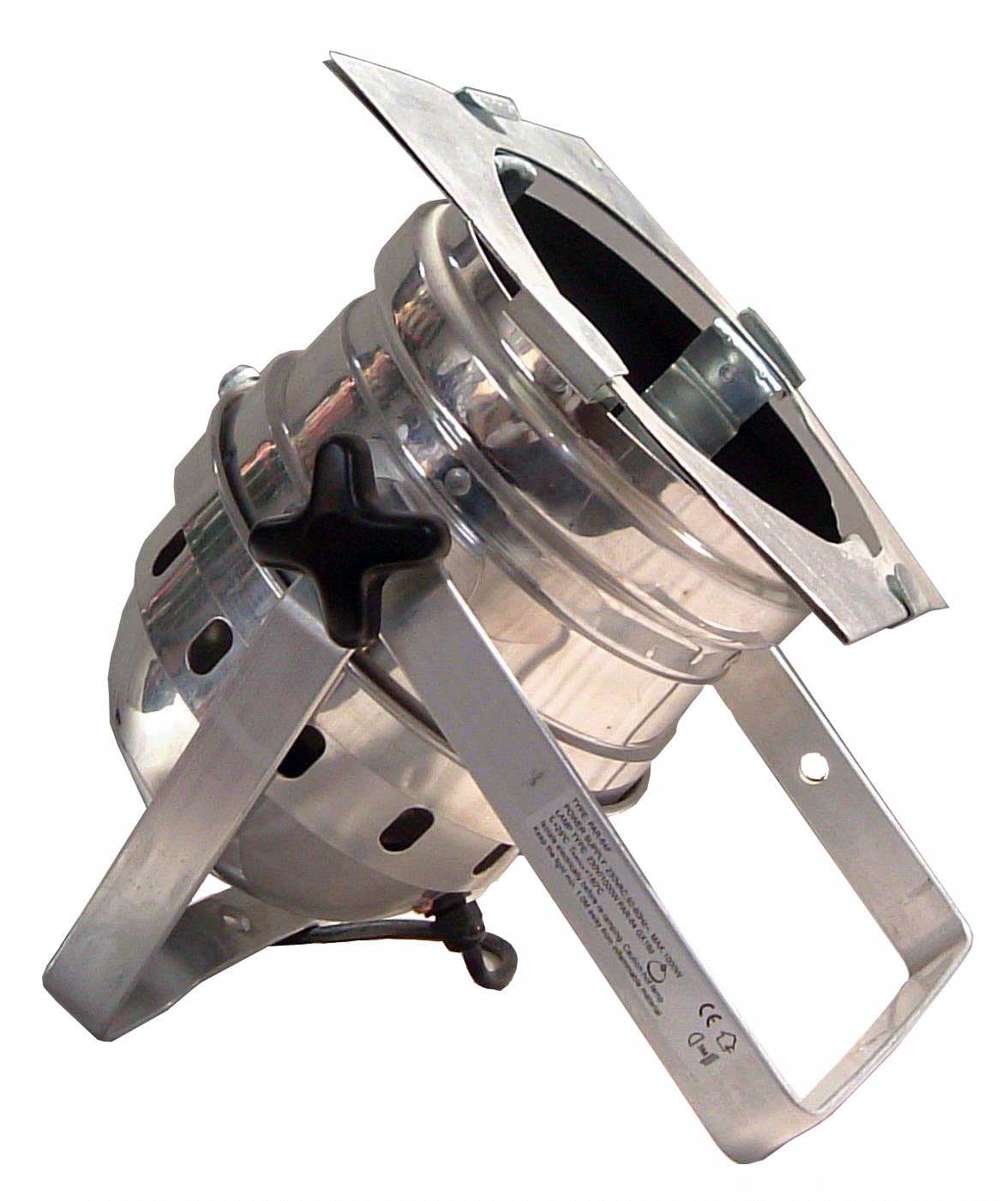

Par 56 300w Floor can ( chrome )



This is the floor fitting with a double bracket that can be placed on stage

or used as an up-lighter with the benefit of being able to be directed at any angle.

Can also be supplied with a 2 inch hook clamp and safety bond for fitting to a lighting bar.



Fitted with a 15A round pin plug,

Square gel frames are included.

Lamp: 300w medium beam.

Colour:- Chrome

Gel filters available on request.



It is manufactured from thick gauge aluminium for maximum durability and

with high quality components, these all contribute to the longevity of the product.



24 Available from our hire stock

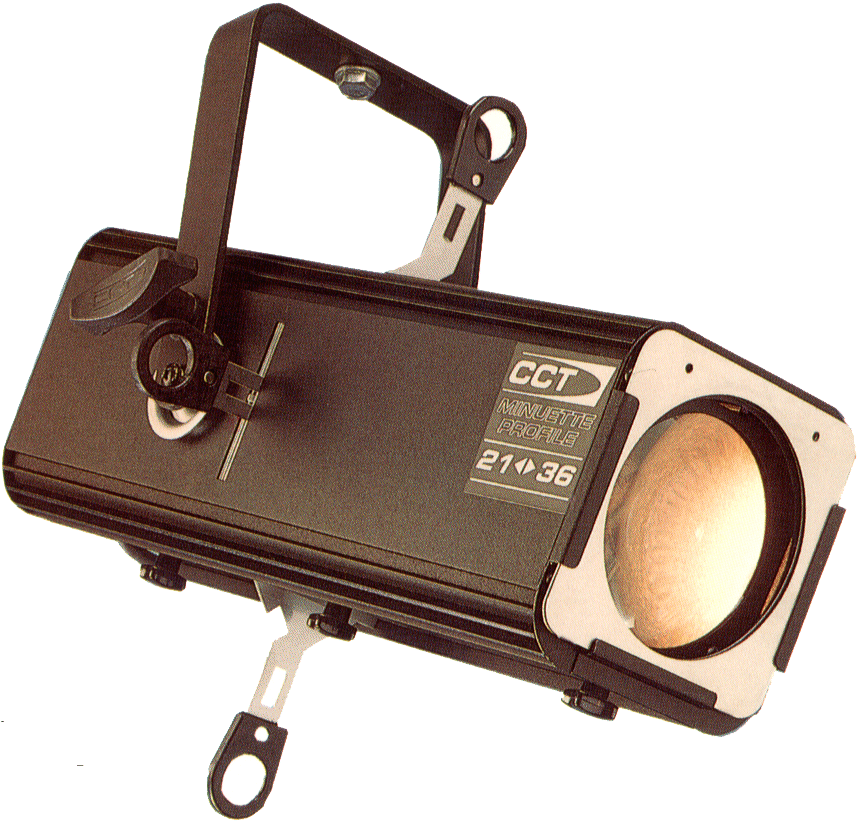

CCT 21/36 degree Reflector Variable Beam Profile Light



Minuette 21<>36 deg Reflector Profile



A versatile unit used for the medium throw front of house positions where hard cut off on the stage edge is required, or soft edge for merging of beams for on stage wash.

The two lens zoom system is adjusted by the heat resistant knobs under the front of the unit between 21 to 36 deg hard edge, the soft edge range is greater.



This beam can be precisely shaped by the use of the four retained (but removable when the cut out is engaged into the side extrusion) shutter blades which have heat resisting handles for easy use. To give a “Peaked” or “Flat” beam the lamp position is adjustable.



The heat resistant rear handle and the ‘T’ shaped tilt locking knob give easy cool control when adjusting the unit position,



Typical performance based on calibrated T26 650 w Monoplane 400hr

3050K Lamp giving 15,000 Lumen set at Hard edge focus



Peak

Setting

Cut off angle 1/2 Peak angle Peak candela

Narrow 21 deg 10 deg 41,500

Widest 36 deg 16 deg 33000

Flat

Setting

Cut off angle 1/2 Peak angle Peak candela

Narrow 21 deg 17 deg 30,000

Widest 36 deg 25 deg 20000



6 Available from our hire stock





Showtec MSR575 Follow Spot



Comes with Tripod Stand / Flight Cased



 Mechanical shutter
 Mechanical dimmer
 Mechanical iris
 Mechanical frost filter
 Mechanical colour gels (red, green, blue, yellow, orange)
 Mechanical zoom
 Mechanical focus

Technical Info
Power supply: AC 230V / 50 Hz
Power consumption: 650 Watt
Lamp: MSR 575
Lampsocket: G22
Dimensions: 960 x 300 x 380 mm (LxWxH)
Dimensions flightcase: 1050 x 580 x 620 mm (LxWxH)



2 Available from our hire stock



Zero 88 Betapack 2







Zero 88 Betapack 2 (Fitted with a 32A ceeform mains plug)



Betapack 2 : 6 x pairs (parallel) - 15a Sockets



The Zero 88 Betapack 2 range of dimmer packs are 4U high professional six channel

power controllers capable of driving up to 10 Amps of lighting loads per channel.

Channel protection via breakers or fuses. Lighting loads may be resistive or inductive and include tungsten, transformer driven low voltage (e.g. pin spots), and quartz halogen. Some highly inductive loads such as neon may require the preheat

setting to be adjusted to give smooth control.



Electrical



The Betapack 2 range is designed to operate on 230v + 10 % - 15% ac supplies at 50Hz.

The packs will not operate satisfactorily outside these specifications.

The packs may be wired: Single Phase: 60A 1 phase 2 wire 230v (255v max phase to neutral).

Earth leakage less than 1mA.

Three Phase Star: 20A 4 230/380v (255v max phase to phase).wire

Earth leakage less than 1mA.

Three Phase Delta: 30A 3 wire 230v. (255 max phase to phase).

Earth leakage less than 4mA.

Max total load: 13.9kW @ 230v.

Load per channel: 0.1A Min; 10A Max

No load consumption: 10w



If used in conjunction with MCBs, to avoid nuisance

tripping use high inrush current (Type K) MCBs .

Input Signals: 0 to + 10v or 0 to -10v, autosensing.

Desk Supply is +/- 20v nominal at 100 mA.

Polarity is set by a switch on the front panel.

Input Impedance: not less than 50kW



Physical



Max Operating Temperature: 40º C Ambient

Size: Free Standing: 447 x 177 x 195mm (17.5 x 7 x 7.7 inches)

Rack Mounted: 483 x 177 x 195mm (19 x 7 x 7.7 inches)

Wall Mounted: 483 x 177 x 240mm (19 x 7 x 9.5 inches).

Net Weight: 8 kg (17.6lbs).





Behringer Eurolight LC2412 24-Channel DMX Lighting Console





The Eurolight LC2412 is a professional 24-channel DMX lighting console with 24 preset channels assignable to 512 DMX channels. 120 scenes are storable in 10 banks, and there is an integrated chaser with up to 650 steps featuring sync-to-bass beat plus a frequency-dependent sound-to-light function.



Crossfade time is freely selectable, allowing for super-smooth scene fades, and there are two additional, multi-functional channels for special effects (e.g. fog machine, color changer etc.).



You get ultra-flexible fading functions for manual and automatic operation and intuitive solo and channel flash functions. Our extremely effective preview function allows "hidden" memory and chaser checks—even during live performances.



The LC2412 also features dimmer control via DMX or analog output (0/+10 V) plus a MIDI interface for cascading of two LC2412s (master/slave setup) and a PCMCIA card slot for storing of up to 25 complete settings PCMCIA card not supplied). For added comfort, there are illuminated display/controls and BNC lamp socket for easy operation in dark stage environments.



The whole unit is extremely ruggedly constructed, and its steel casing ensures long life even under the most demanding conditions.





Chamsys MagicQ PC USB to DMX ( Full )







Features

  • USB connector

  • Single DMX output/input

  • 5 pin XLR

  • No time usage restriction

  • Basic electrical protection

  • LED status indicator





MagicDMX is a low cost, single universe USB DMX interface created by ChamSys which contains an on board processor to process the DMX packets. Because all timing is done by the interface rather than relying on the host operating system, this ensures that the DMX timing is correct and consistent.  MagicDMX connects to MagicQ  running under Windows, Mac or Linux. It doesn't use any special drivers for the device, so you can just plug and play.  MagicDMX defaults to outputing on Universe 1 from the MagicQ software but can be used on any universe.



The MagicDMX Full interface is aimed at Professional users wishing to have full access to DMX lighting control for shows and installations. The MagicDMX Full provides a great lighting troubleshooting system.

It can be configured to either output or input a single universe of DMX, but unlike the MagicDMX Basic interface, MagicDMX Full is not time limited and can be used continuously.

MagicDMX Full outputs DMX via a 5 pin female XLR connector. If you want to use the MagicDMX interface in DMX input mode a gender reverser is required.



Note: A PC or Mac is required to use MagicQ software.

Software available from:- https://chamsyslighting.com/pages/uk-home-page







Copyright © 2003-2020 Chamsys Limited





GVG-922 1500w Upward Fog / Smoke Machine





Powerful 1500w with upward spraying distance of 8 metres.

Outputs 20,000 cu.ft per minute, operated by remote

control ( wireless ) or DMX



Heat-up time: 12 minutes

Circuitry control: Remote control

DMX512 signal

Tank capacity: 2L

Upward spraying distance: 8m

Weight: 7Kg

Output: 20000cu.ft/min

Voltage/; AC220V

Power: 1500w

Size: 40*29.5*16.5cm

Weight 5.8kg





QTX HZ-2 600W Haze Machine







The HZ-2, an upgrade of the highly successful FX1000, is the ultimate in fine mist generation. This model features a uniquely designed nozzle and 600W heater. It's relay temperature control allows a consistent flow of haze while preserving the lifespan of the product. Radically different in its construction from traditional haze machines, this unit can quickly and smoothly develop a pre-determined level of haze and maintain it consistently. Control of the HZ-2 is achieved by the 2-channel DMX or via the included remote control/timer. This product has been specifically developed for professional installations and high-end DJ applications.

  • 2,400 CU Ft (68m³) per minute (approx.)

  • Relay temperature controlled for constant temperature control and longer life

  • Uniquely designed nozzle for reduced condensation build up in the pipes

  • True constant haze output

  • Variable output angle

  • Low fluid indicator

  • Timer output remote control included

  • Easy to transport and portable

  • 2-channel DMX (output level and fan speed)

  • Removable tank for easy maintenance





Manfrotto 087NW Wind-Up Equipment Stand







Chrome steel stand with geared column.

2 risers extend simultaneously at an elevation of 4.4 cm per handle turn.

Safety cable ensures simultaneous retrieval of all sections. 1 levelling leg.



closed length - 181.0 cm

minimum height - 167.0 cm

maximum height - 370.0 cm

load capacity at maximum - 30.0 kg

extension at 6° inclination

weight - 21.40 kg

load capacity - 30.00 kg

travel of column for each 360° turn of handle - 4.4 cm

footprint max diameter - 128.0 cm

colour  - silver

material - chrome steel

leg cross section -  round

column cross section – round

geared column – yes

attachment (top) - type 14

section centre column – 3

risers stand number – 2

levelling leg - 1

stand leg size - Ø30mm

column tube diameter - 55,45,38mm

TØV – yes



6 Available from our hire stock





OPTI Trilite 200



OPTI Trilite 200 is the original 50.8mm (2") trussing system manufactured by OPTI.



The stylish appearance is enhanced by remarkable loading capabilities enabling the system to be specified for both internal and external structural applications. The system is developed continuously to present new ideas and solutions. Components are integrated with custom fabrications enabling limitless possibilities for designers.



OPTI Trilite 200 Connection

The OPTI Trilite 200 connection is a simple M10 Nylock nut and high tensile bolt spigot system, secured with 17mm spanners. It is a strong easy to use, reliable method of assembley.

OPTI Trilite 200 lengths start from 0.4m and go up in increments of 0.2m.

OPTI Trilite 200 loading data below.



SYSTEM SPECIFICATIONS

Main Tube

50.8mm diameter x16 s.w.g.

Lacing Spars

12.7mm diameter x 16 s.w.g.

Material.

6005 - T6 Aluminum



Triangular

Length

0.4

0.8

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

Ref. Code

2 TR 400

2 TR 800

2 TR 1000

2 TR 2000

3 TR 3000

4 TR 400

5 TR 5000

2 TR 6000

2 TR 7000

2 TR8000

Weight kg

2.03

3.09

3.61

6.24

8.86

11.45

14.11

16.74

19.36

22.0

Max UDL kg

N/A

N/A

1,245

1,196

916

688

565

477

403

360

Max Pnt kg

N/A

N/A

549

405

316

267

221

200

173

155





Socapex 19 pin Multiway Cable (1.5mm)



Industry standard wiring for use with lighting systems

capable of running 6 ways (18 x 1.5mm cores)

Fan in and outs available to 15A round pin plugs and sockets











Litedeck 8ft x 4ft x 2ft (W x D x H) Sections ( with TopLok System )





LiteDeck is one of the highest performing and most popular decking systems in the world of demanding touring productions. Tried and tested internationally, it is a lightweight yet robust staging solution that can be relied upon to perform.



Structurally Approved



LiteDeck system is designed to provide a 5kn/m2 uniform load rating in all configurations, when used in compliance with our assembly guide lines. Only genuine Litestructures components should be used, and full design calculations and assembly layouts are available on request.



Spaceframe Construction



The key to the impressive touring performance of LiteDeck is the spaceframe aluminium construction. Manufactured from high strength 6082T6 aluminium section, the frame utilises the same technology as entertainment truss systems, with regular diagonal braces to transfer loads to the outer edges of the structure.



Top Options



LiteDeck is completed by the addition of a variety of options for the top board surface. Standard, and by far the most popular finish, is robust 19mm plywood painted matt black, which is connected, as with all tops, by a set of bolts which allow removal, maintenance and replacement over the life of the deck. For more elaborate applications, LiteDeck is also available with clear macrolon tops to allow the transmission of lights from the under stage, or open aluminium mesh tops, to facilitate the use of pyrotechnics or smoke effects.



TopLok System



Introduced specifically in response to feedback from touring productions, the optional TopLok system offers time savings, and hence crew cost benefits, in the assembly of any stage configuration. Utilizing an integrated claw catch design, decks can be joined from above with the single turn of an allen key, ensuring the fastest possible build and strike times.



Specification



Litestructures' stage decking system is manufactured from high tensile aluminium alloy grade 6082T6.

The material has a 0.2% proof stress of 225MN/m2. The sections are extruded and comply with BSEN755-2.

The decking frame is constructed through the TIG welding process and is carried out in accordance to specifications laid out in BS3019: part 1: Specification for TIG welding of aluminium by welders certified to BS:EN:287-2: Approval testing of welders for fusion welding - part 2: aluminium and its alloys.

The deck is made from 19mm standard grade plywood, similar to that used on truck platforms. It has a high resistance to point loads and can carry the loads associated with staging.



Weight: 49kgs





TOP



Back to Hire Price List





Lighting Package Prices

Small

( Up to 50 audience )

Small / Medium

( Up to 100 audience )

Medium

( Up to 200 audience )

Medium / Large

( Up to 300 audience )





Lighting System Package - Small









6

Par 56 300w Floor can ( chrome )

£14.40

1

Zero 88 Betapack 2

£10.00

1

Behringer Eurolight LC2412 24-Channel DMX Desk

£18.00

1

Manfrotto wind up stand - Type 087NW       ( optional )

£12.00

1

2m 2" Tube Bar                                           ( optional )

£0.20

 *

All cable included



*

Hire Total

£54.60

*

Delivery / Collection within 25 miles ( on orders over £75.00 )

Free

1

Engineer deliver set up, dismantle, collect

£60.00

*

TOTAL

£114.60



NOTES.



Engineer fee based on 3 hours.

Delivery and collection free up to 25 miles for orders over £75.00

Thereafter mileage charged at .38p per mile

Please note that this is only a guide to system requirements.

No two shows are the same.

OPTIONS / REQUIREMENTS.



Customer collect / return - will need van / large estate.

Colour gel for Par 56's included.

Sound to light plus chase facility.

1 x 13A wall sockets required at venue.

Back to Sound Package Prices.





Lighting System Package - Small / Medium











2

Martin Mac 250+ Moving Head

£96.00

6

Par 56 300w Floor can ( chrome )

£14.40

1

Zero 88 Betapack 2

£10.00

1

Behringer Eurolight LC2412 24-Channel DMX Desk

£18.00

1

Manfrotto wind up stand - Type 087NW       ( optional )

£12.00

1

2m 2" Tube Bar                                           ( optional )

£0.20

 *

All cable included



*

Hire Total

£150.60

*

Delivery / Collection within 25 miles ( on orders over £75.00 )

Free

1

Engineer deliver set up, dismantle, collect

£60.00

*

TOTAL

£210.60



NOTES.



Engineer fee based on 3 hours.

Delivery and collection free up to 25 miles for orders over £75.00

Thereafter mileage charged at .38p per mile

Please note that this is only a guide to system requirements.

No two shows are the same.

OPTIONS / REQUIREMENTS.



Customer collect / return - will need van / large estate.

Colour gel for Par 56's included.

Sound to light plus chase facility.

2 x 13A wall sockets required at venue.

Back to Sound Package Prices.

TOP



Lighting System Package - Medium









2

Martin Mac 250+ Moving Head

£96.00

6

Thomas Par 64 1000w long nose can ( black )

£21.60

6

Par 56 300w Floor can ( chrome )

£14.40

2

Zero 88 Betapack 2

£20.00

1

Behringer Eurolight LC2412 24-Channel DMX Desk

£18.00

2

Manfrotto wind up stand - Type 087NW

£24.00

1

4m 2" Tube Bar

£0.40

 *

All cable included



*

Hire Total

£194.40

*

Delivery / Collection within 25 miles ( on orders over £75.00 )

Free

1

Engineer deliver set up, dismantle, collect

£60.00

*

TOTAL

£254.40



NOTES.



Engineer fee based on 3 hours.

Delivery and collection free up to 25 miles for orders over £75.00

Thereafter mileage charged at .38p per mile

Please note that this is only a guide to system requirements.

No two shows are the same.

OPTIONS / REQUIREMENTS.



Customer collect / return - will need van / large estate.

Colour gel for Par Cans included.

Sound to light plus chase facility.

3 x 13A wall sockets required at venue, or 32A single phase

Back to Sound Package Prices.

TOP



Lighting System Package - Medium / Large













2

Martin Mac 250+ Moving Head

£96.00

12

Thomas Par 64 1000w long nose can ( black )

£43.20

8

Cameo LED Par 64 / DMX RGB 18x3w Tri Colour

£96.00

8

Par 56 300w Floor can ( chrome )

£19.20

4

CCT Profile 650w Spot

£20.00

3

Zero 88 Betapack 2

£30.00

1

Chamsys MagicQ PC USB to DMX ( Full )

£18.00

1

Laptop PC Lenovo T420 Thinkpad

£60.00

2

Manfrotto wind up stand - Type 087NW

£24.00

4

2m Opti Trilite 200 Lighting Truss

£36.00

 *

All cable included



*

Hire Total

£442.40

*

Delivery / Collection within 25 miles ( on orders over £75.00 )

Free

1

Engineer deliver set up, dismantle, collect

£80.00

*

TOTAL

£522.40



NOTES.



Engineer fee based on 4 hours.

Delivery and collection free up to 25 miles for orders over £75.00

Thereafter mileage charged at .38p per mile

Please note that this is only a guide to system requirements.

No two shows are the same.

OPTIONS / REQUIREMENTS.



Customer collect / return - will need van / large estate.

Colour gel for Par Cans included.

Sound to light plus chase facility.

32A single phase or 63A three phase required

Back to Sound Package Prices.











4

4

2

1

1

1

EXAMPLE - Small Stage System.



Thomas Par 64 1000w long nose can ( black )

CCT Profile 650w Spot

Manfrotto wind up stand - Type 087NW

4m 2" Tube Bar

Zero 88 Betapack 2

Eurolight LC2412 24-Channel DMX Desk

















TOP



Back to Hire Price List



HOME
